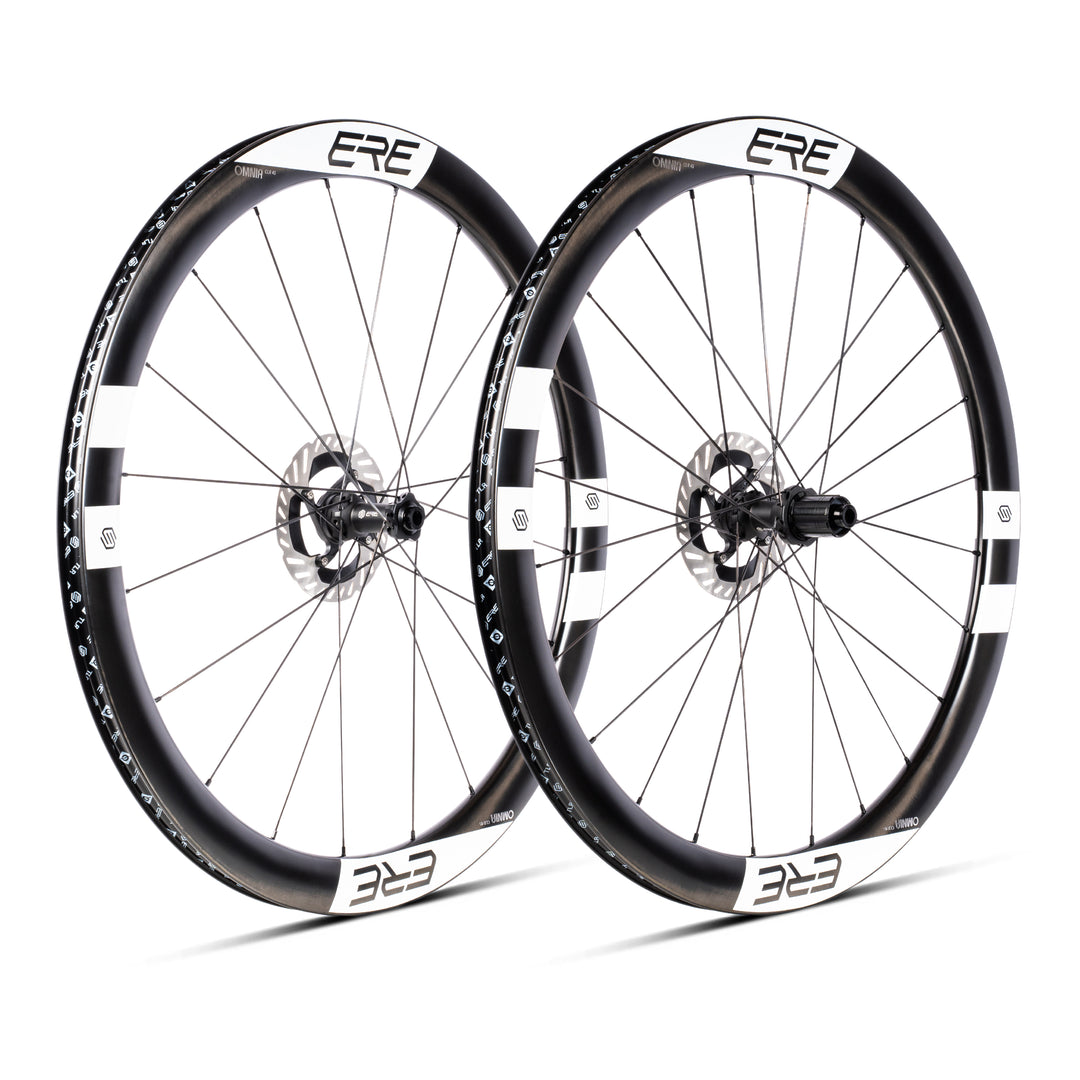

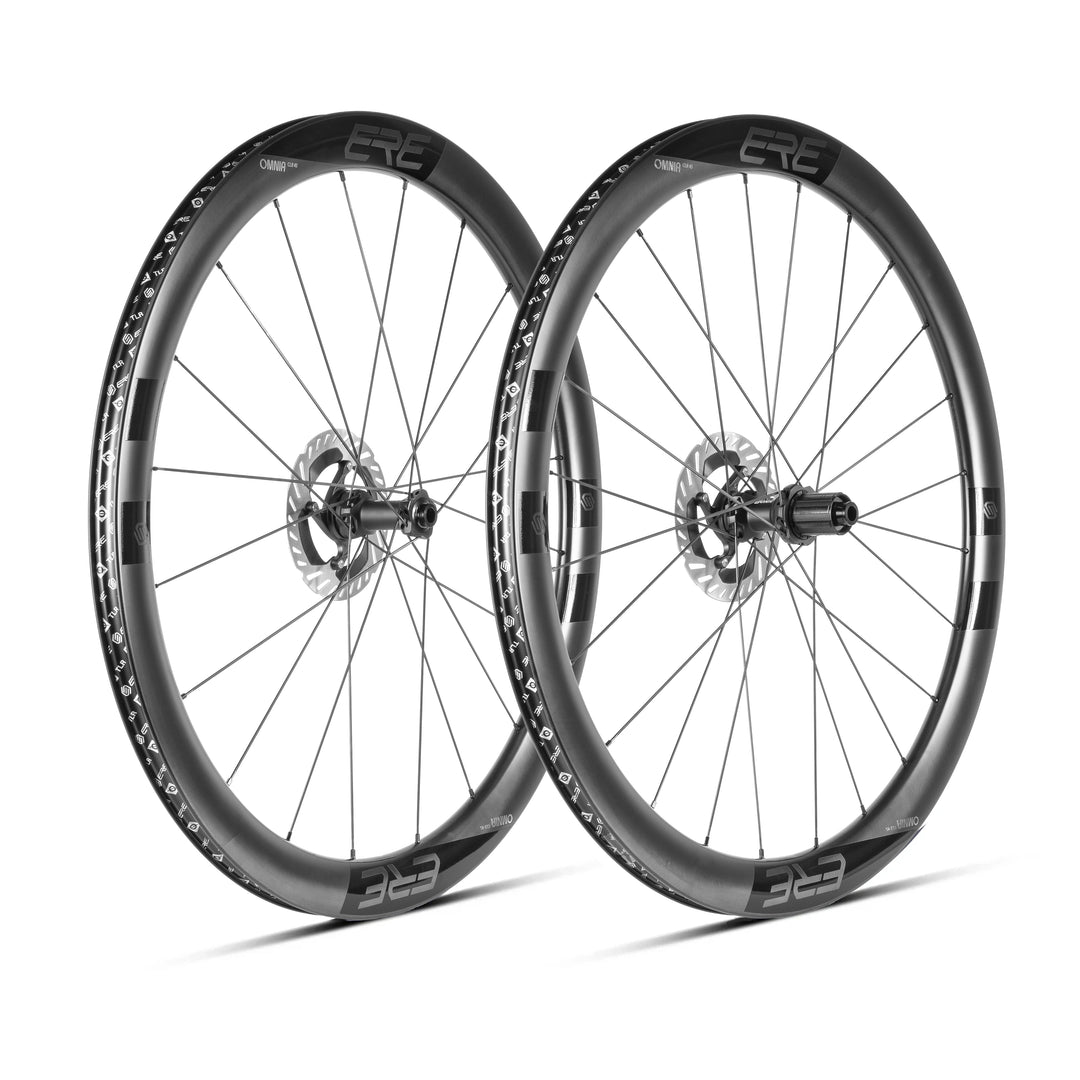

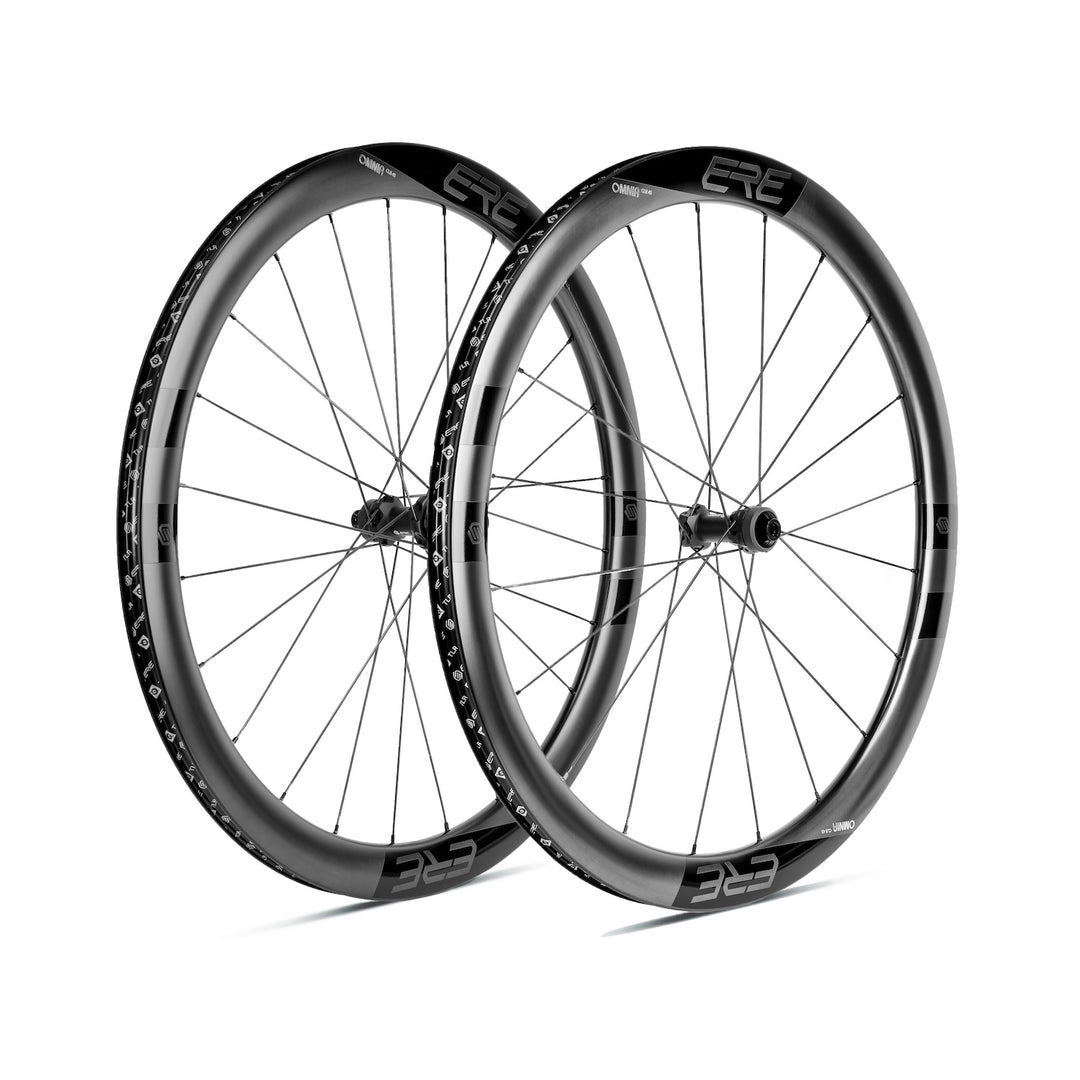

What if you can upgrade your road bike with all-road UCI-approved wheels? Our new Omnia II CLR45 are just that: carbon wheels that perform very well on the road and are strong enough for the occasional light gravel adventure.

The biggest bang for buck wheels for your road bike? Meet our brand new 45mm carbon aero rims, the Omnia II CLR45! The sleek wheels are fitted with our latest 12mm thru-axle IONA hubs including a star ratchet body engagement system. With an internal rim width of 21mm you can fit all modern-size road tires (25 mm to 36 mm).

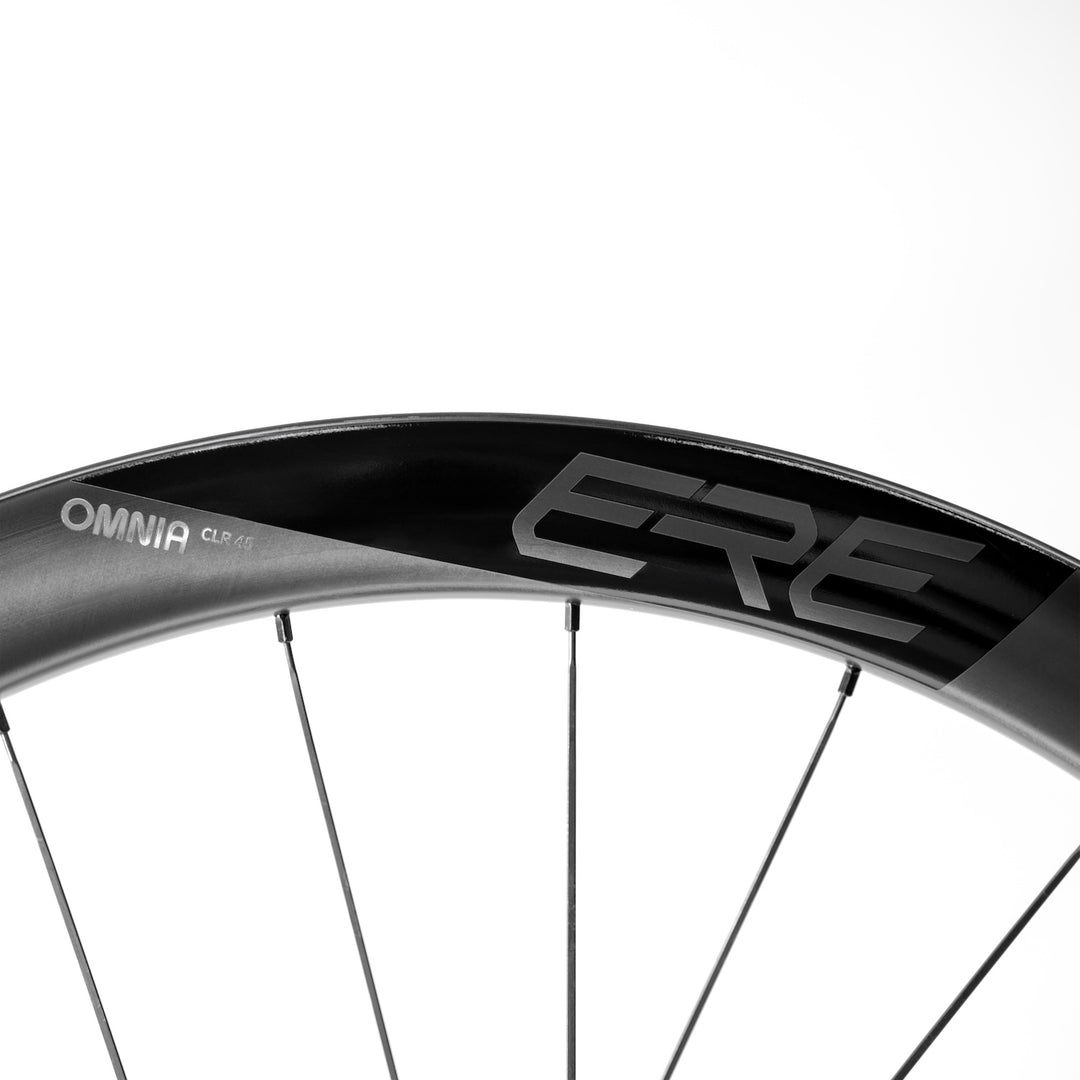

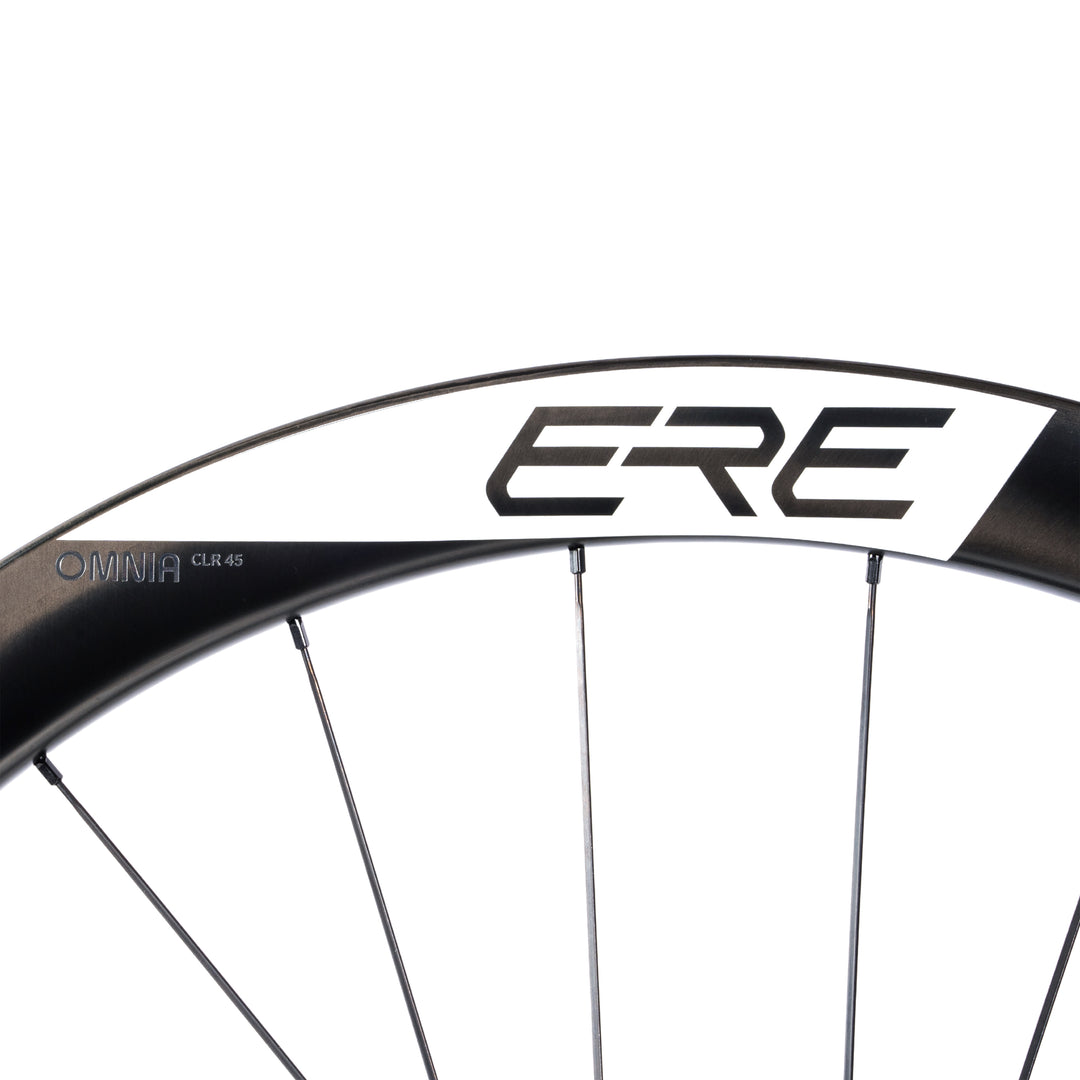

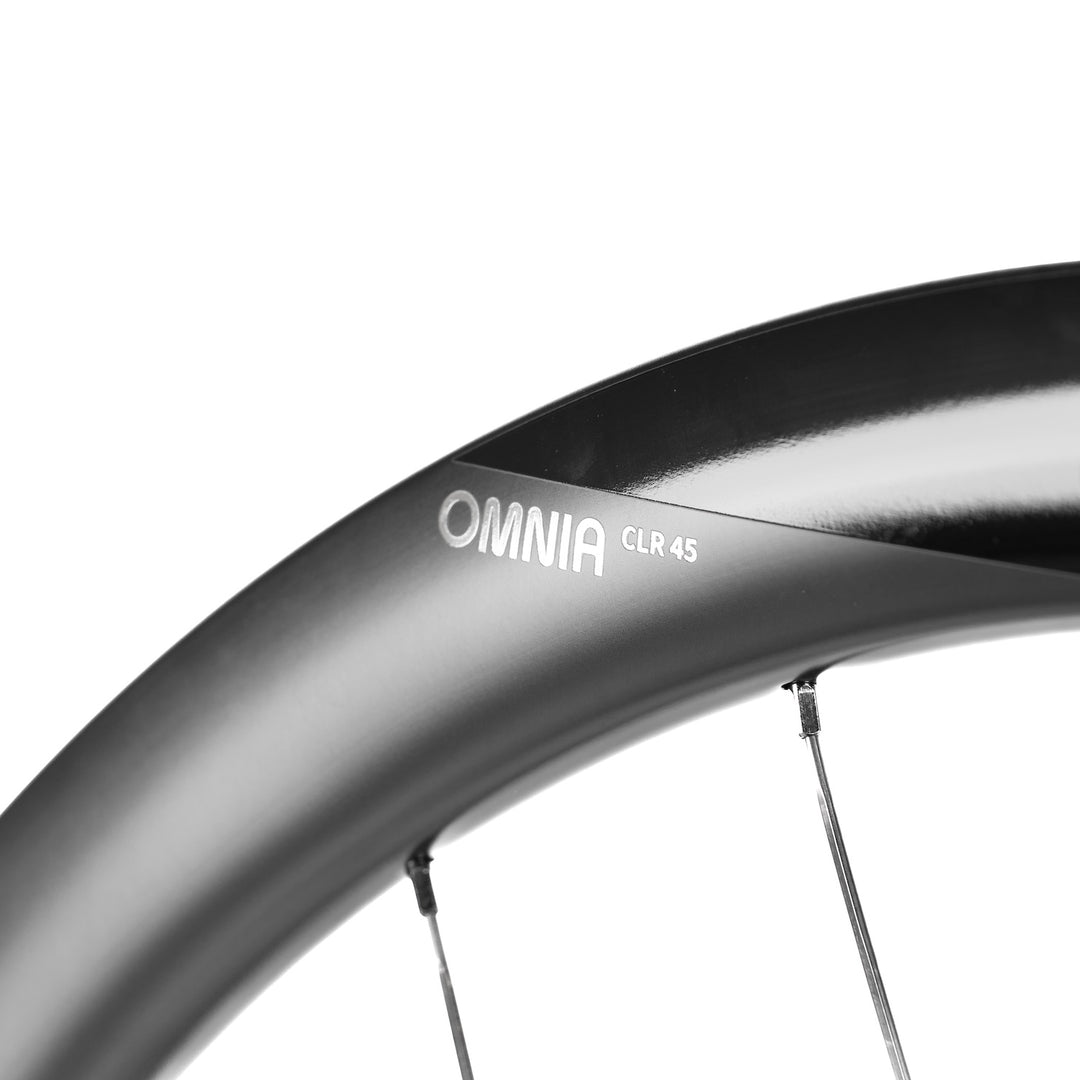

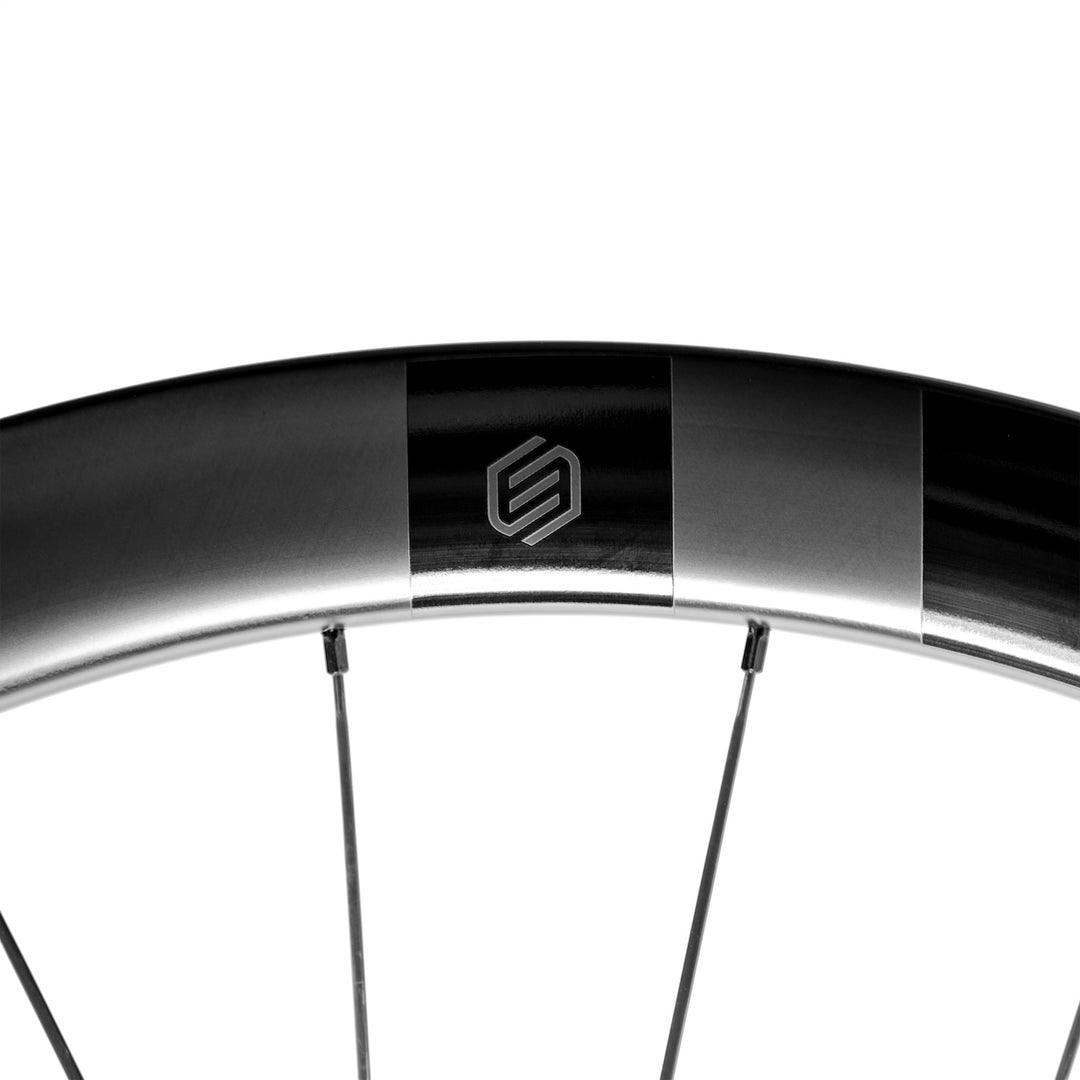

New CLR45 Road rim

The Omnia II CLR45 wheelset uses a lightweight rim made of unidirectional carbon with a wider 21mm inner width and a 45mm rim height. That way you can easily fit wider road or gravel tires. Furthermore, the rim has excellent damping and anti-vibration characteristics.

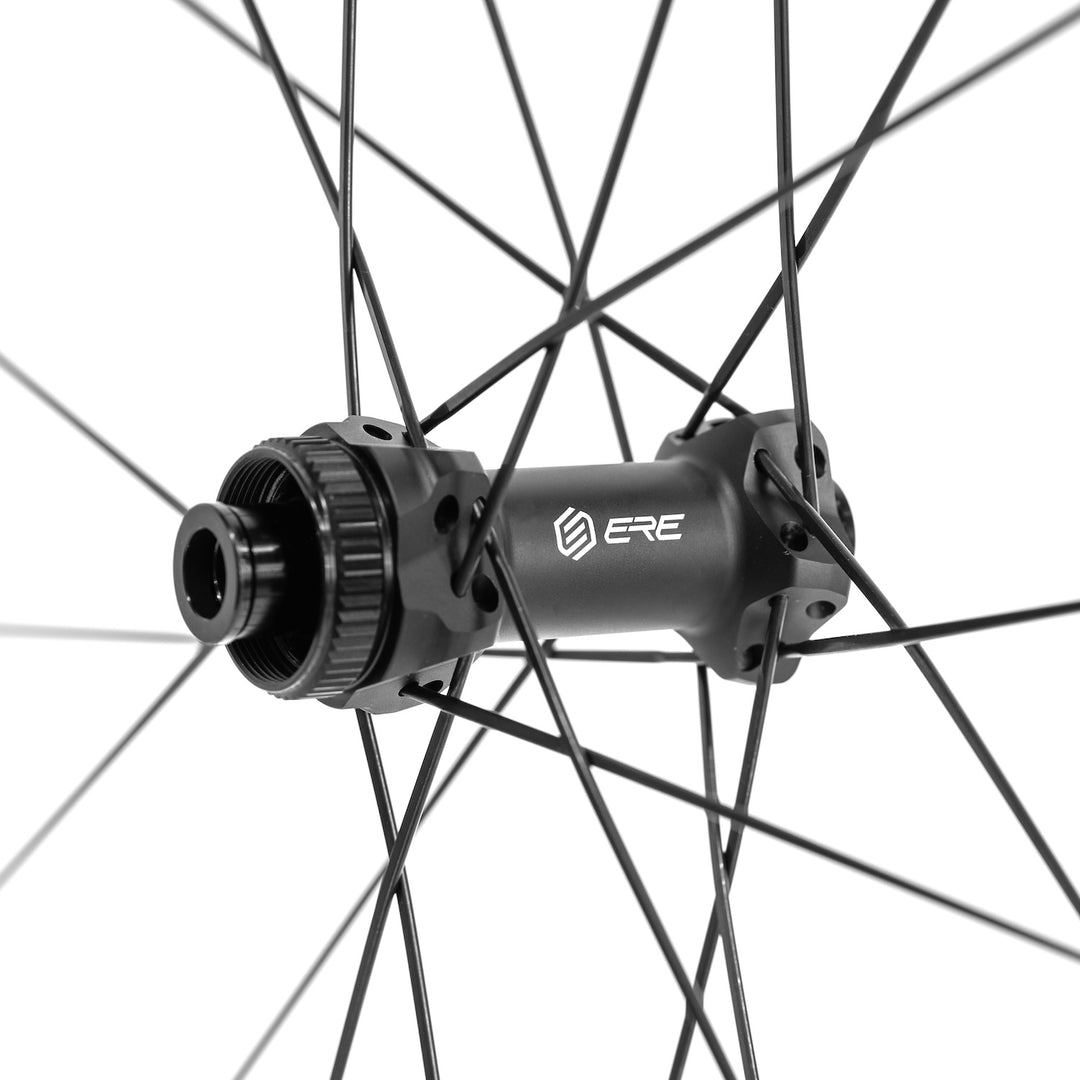

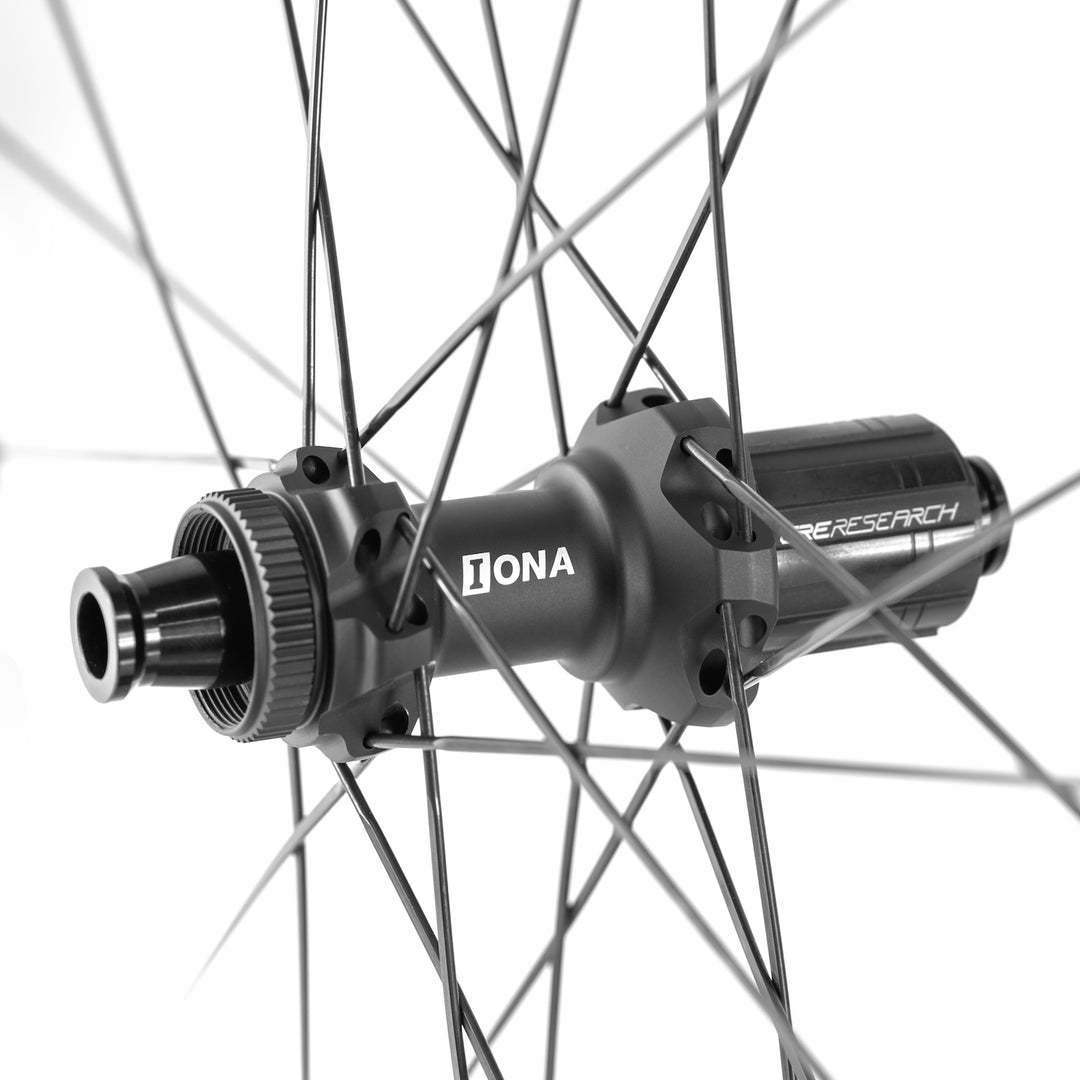

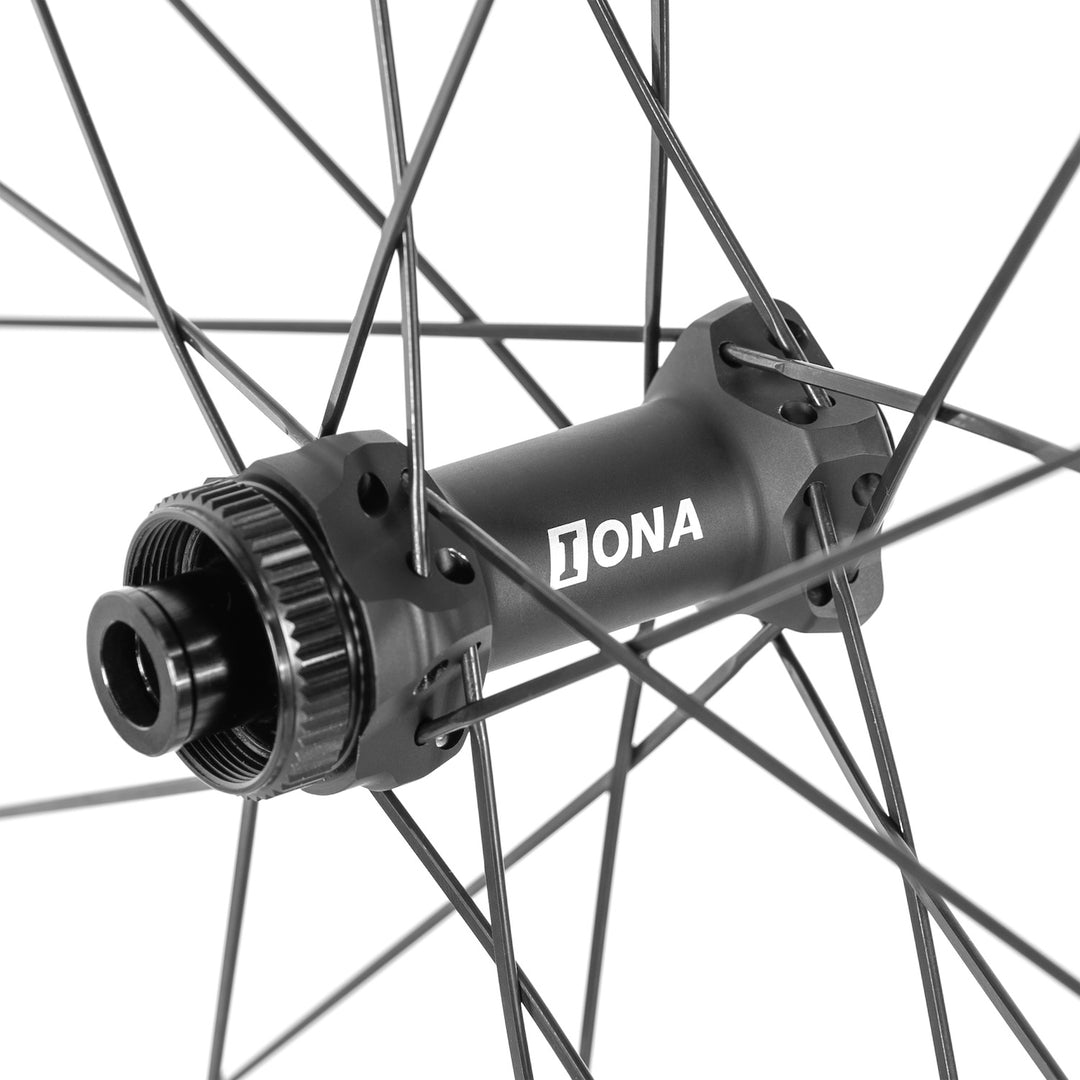

Iona S hubs

Ere Research Iona S hubs are 100% in-house designed and built with precision manufacturing. The hubs are bulletproof and will practically run forever when properly taken care of. The straight-pull hubset has a low profile and a sturdy design. Its angled flange supports the directional torque going through the hub body, so it can take any beating.

Our trusted Iona S hubs are as light as possible, without compromising on strength and reliability. At the same time, we accomplished to maintain the structural integrity with a very thin wall design made from very high-grade aluminium. This results in weights as low as 242 grams for the rear hub and 113 grams for the front hub. The front hub uses a 100 x 12mm axle. For the rear hub we use 12 x 142mm axles. Axles are not included with the wheels.

The rear hub is paired to a 36 teeth star ratchet freehub body and is designed around 4 Ere custom cartridge bearings. Both front and rear hub are equipped with centerlock disc brake mounts.

Torque 2 design

The Ere Torque 2 design absorbs the forces that are transferred to the Iona S hubs from the disc brake forces when braking. When the rear wheel gets torque from the hub body when pressure is applied through the chain and cassette, it directs those forces where the material is strongest. That way we can remove material where we can, and add material where needed.

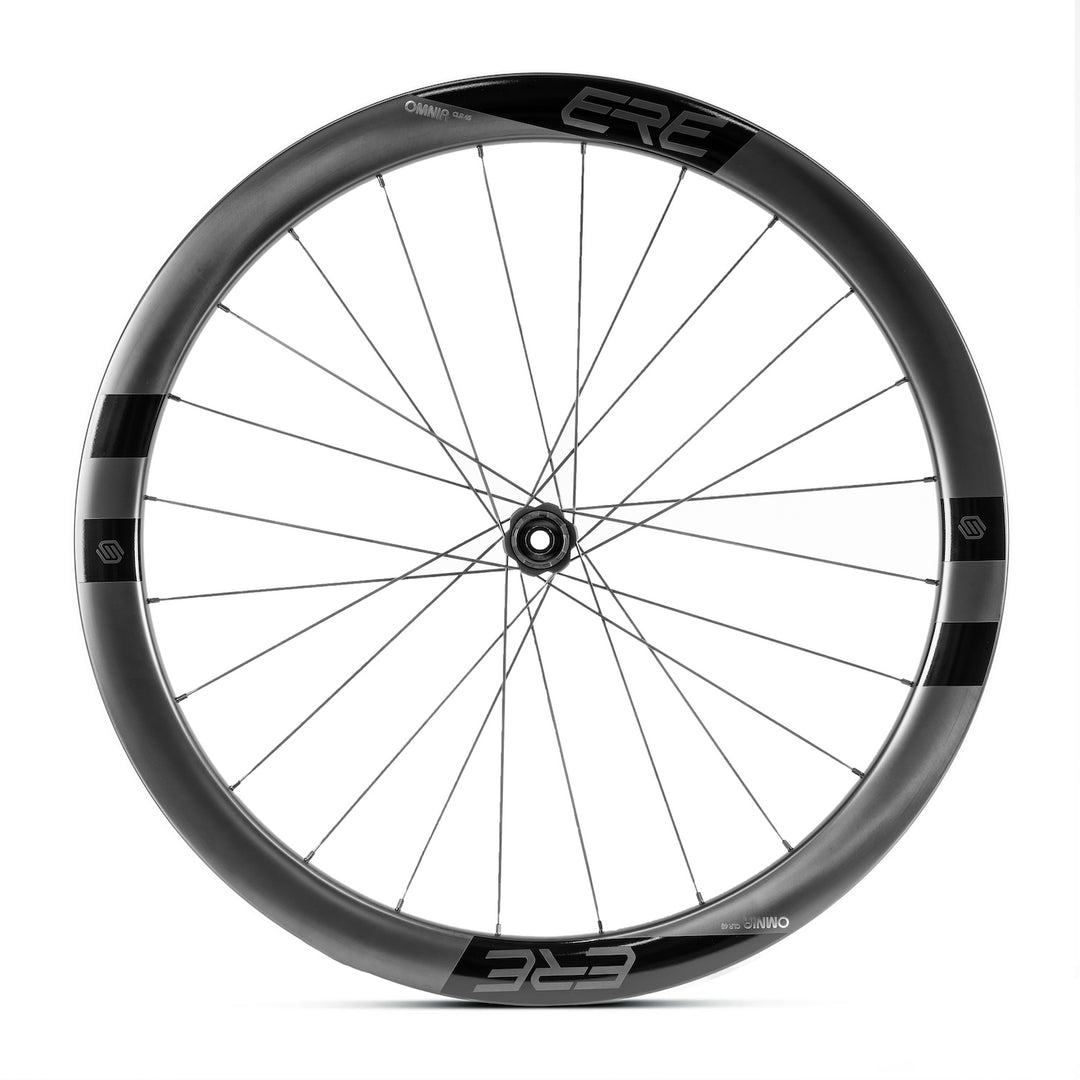

Sapim Spokes

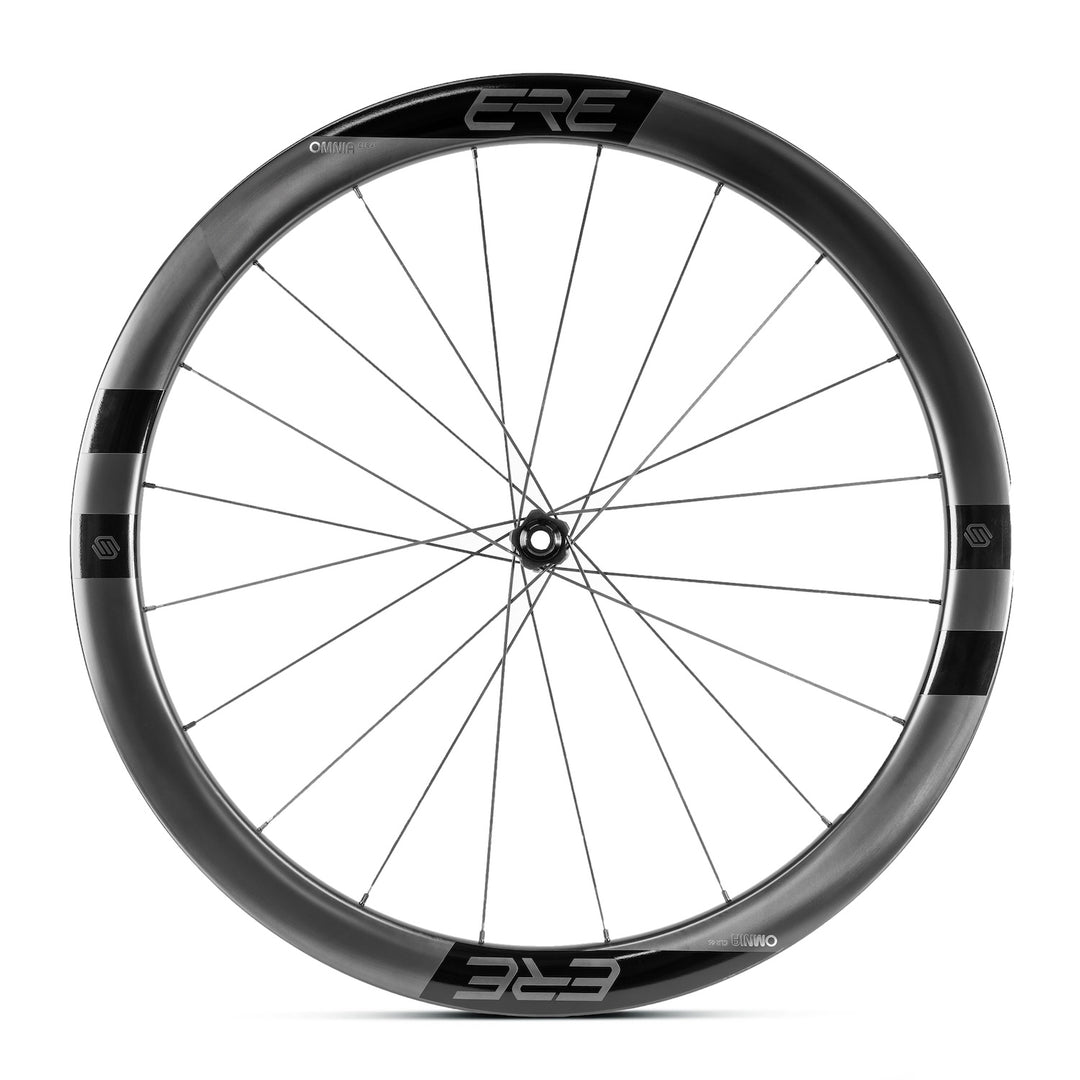

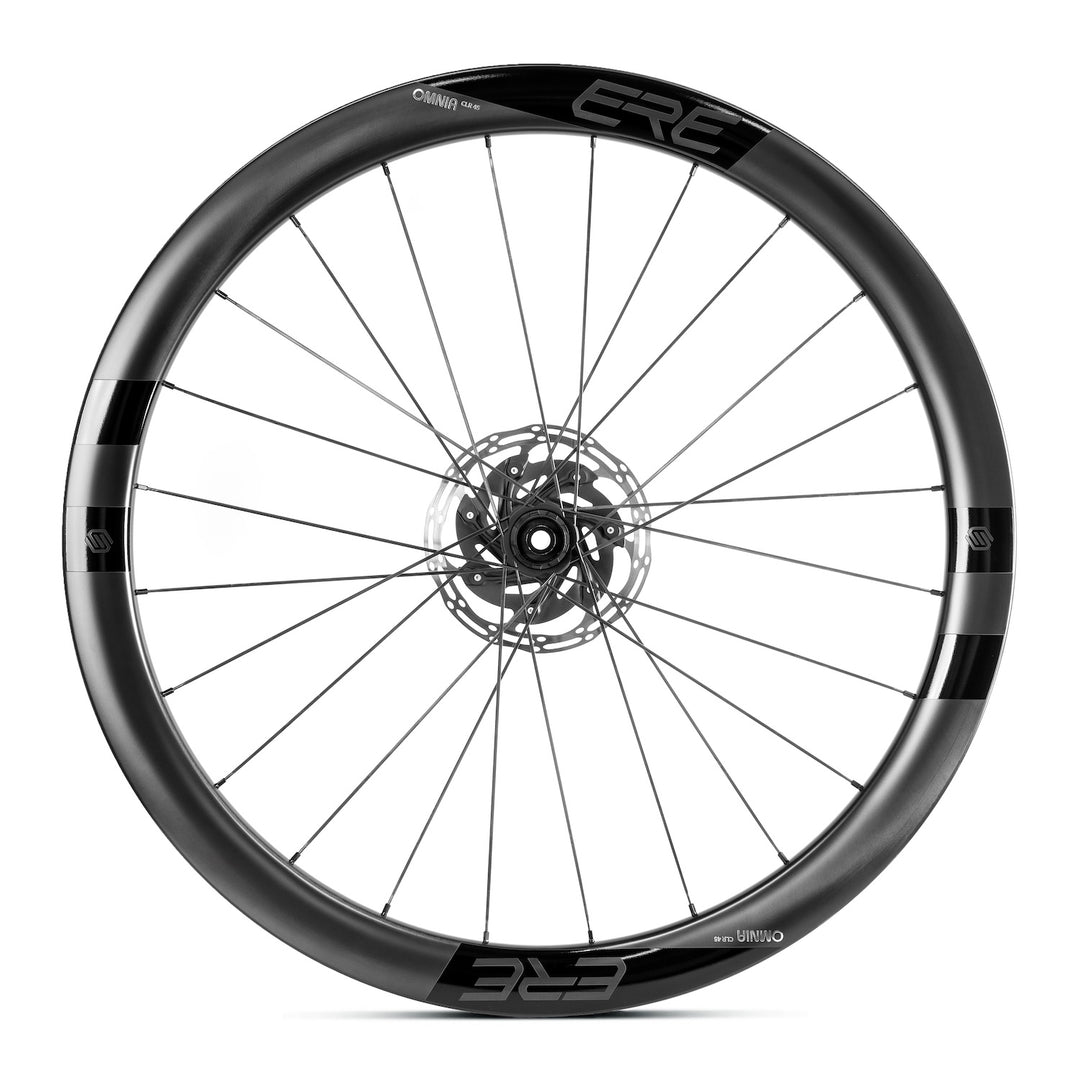

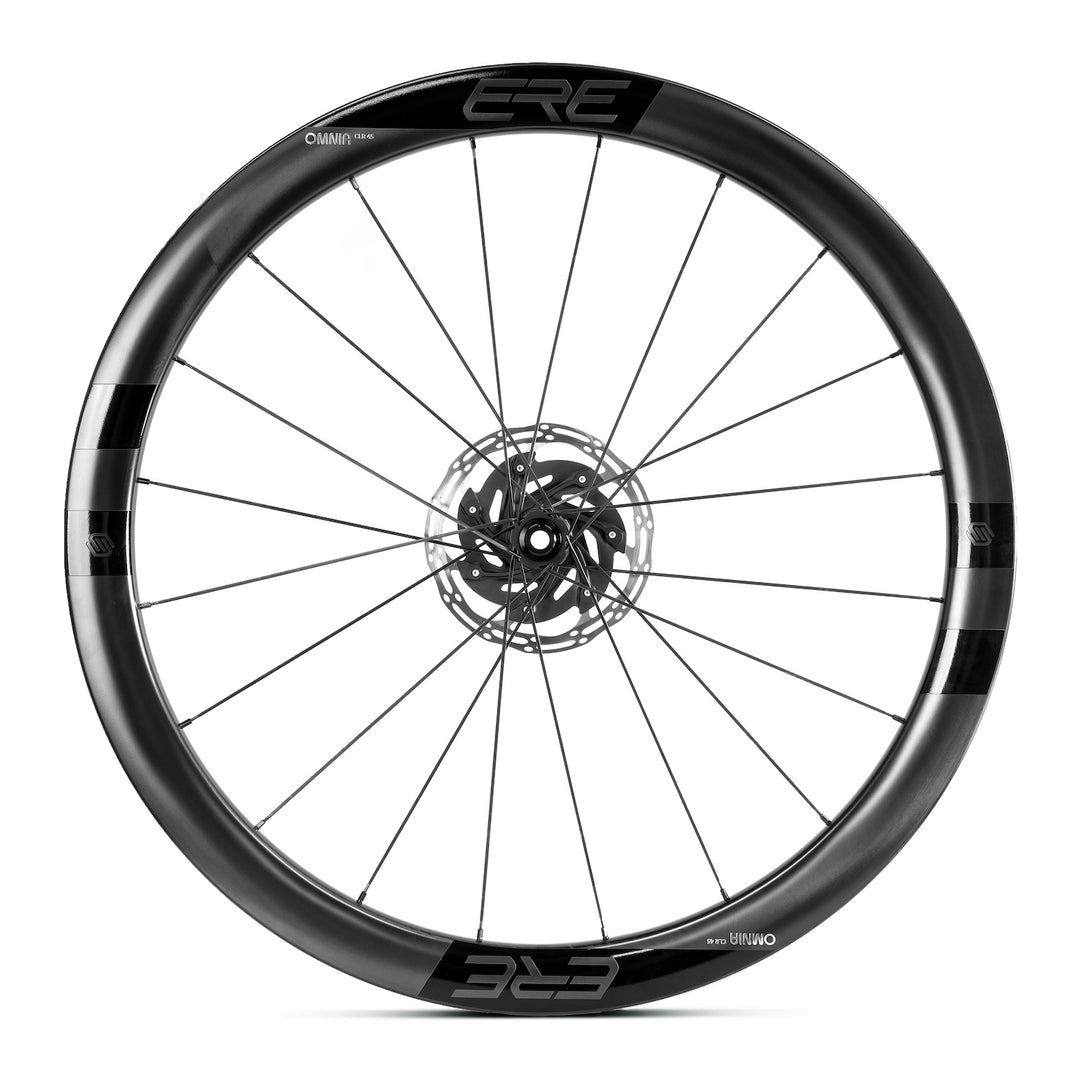

The front wheel comes with 20 aero-bladed Sapim CX Leader spokes paired to the rim with Sapim Double Square black alloy nipples. For the rear wheel we use 24 aero-bladed Sapim CX Leader spokes for extra stability under acceleration.

Tubeless-ready

The wheels are equipped with Ere ProClose tubeless rim tape for easy set-ups without inner tubes.

[{"id":49314967126352,"title":"Shimano HG","option1":"Shimano HG","option2":null,"option3":null,"sku":"11121470","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Omnia II CLR45 - Shimano HG","public_title":"Shimano HG","options":["Shimano HG"],"price":99900,"weight":0,"compare_at_price":99900,"inventory_management":"shopify","barcode":"8720682571514","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49314967159120,"title":"Sram XDR","option1":"Sram XDR","option2":null,"option3":null,"sku":"11121471","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Omnia II CLR45 - Sram XDR","public_title":"Sram XDR","options":["Sram XDR"],"price":99900,"weight":0,"compare_at_price":99900,"inventory_management":"shopify","barcode":"8720682571521","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49314967191888,"title":"Campagnolo Ultra Drive","option1":"Campagnolo Ultra Drive","option2":null,"option3":null,"sku":"11121472","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Omnia II CLR45 - Campagnolo Ultra Drive","public_title":"Campagnolo Ultra Drive","options":["Campagnolo Ultra Drive"],"price":99900,"weight":0,"compare_at_price":99900,"inventory_management":"shopify","barcode":"8720682571538","requires_selling_plan":false,"selling_plan_allocations":[]}]


General
Intended use	Performance Aero Road
Total set weight	1.582 gram (1-3% tolerance)
Front wheel weight	705 gram
Rear wheel weight	877 gram
Tyre compatibility	Clincher (wired/foldable)/tubeless
Recommended tyre width	26C - 32C
Minimim tyre width	23C
Maximum tyre width	36C
Maximum rider weight	130 kg
Brake System	Disc brake only
Race-Ready	YES - UCI approved
Warranty	Lifetime*
Crash replacement	Yes

* Registering your wheels after purchase will extend your warranty to lifetime warranty and will grant access to the Crash Replacement Programme


Rims	Front	Rear
Rim material	full carbon	full carbon
Rim height	45mm	45mm
Rim size (ETRTO)	700C / 28"	700C / 28"
External rim width	28mm	28mm
Internal Rim width	21mm	21mm
Rim type	Clincher/tubeless	Clincher/tubeless
Tubeless (ready)	Yes*	Yes*
Tubeless Tape	Ere ProClose 26	Ere ProClose 26

* Tubeless tape is fitted to the rims. Recommended tubeless tape width is 26mm


Hubs	Front	Rear
Hubs	IONA S	IONA S
Weight	113 grams	242 grams
Hub material	Alloy	Alloy
Spoke pattern	20 hole straight-pull	24 hole straight-pull
Bearings	2 x Ere Custom bearing	4 x Ere Custom bearing
Engagement system		36T Star Ratchet
Compatibility		Shimano/SRAM/Campagnolo
Axle System	TA 100 x 12mm	TA 142 x 12mm
Brake Interface	Centerlock	Centerlock
Finish	Matt black anodised with logo	Matt black anodised with logo


Spokes	Front	Rear
Spoke	Sapim CX Leader Black	Sapim CX Leader Black
Spoke count	20	24
Spoke type	Straightpull Aero	Straightpull Aero
Spoke length*	DS 280mm / NDS 282mm	DS 274mm / NDS 276mm
Nipples	DSN 14G Secure Lock 16mm. alloy black	Sapim Double Square Alloy Black
Spoke tension*	DS 1000-1350Nm / NDS 950-1050Nm	DS 1000-1350Nm / NDS 950-1050Nm

* DS = Disc Side, NDS = Non Disc Side

*DS: Disc Side / NDS: Non-Disc Side

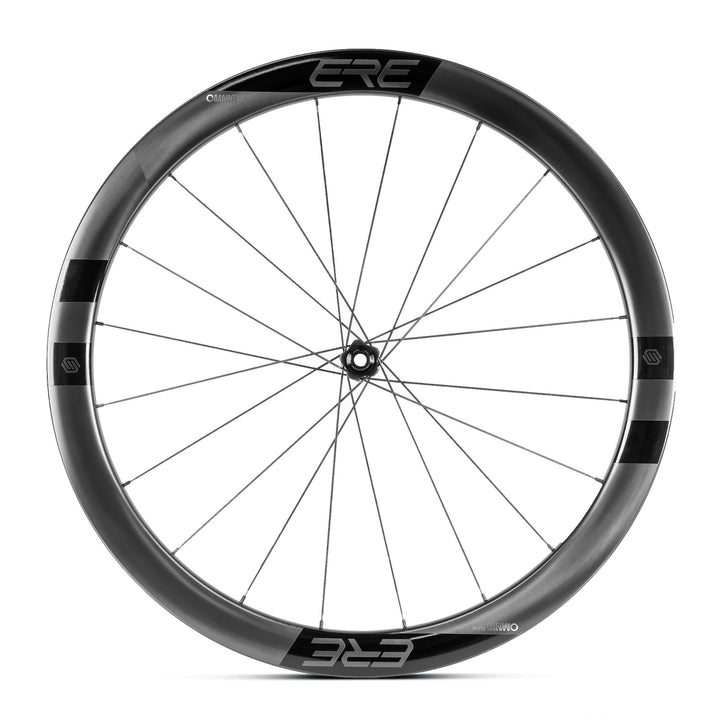

• Front Wheel

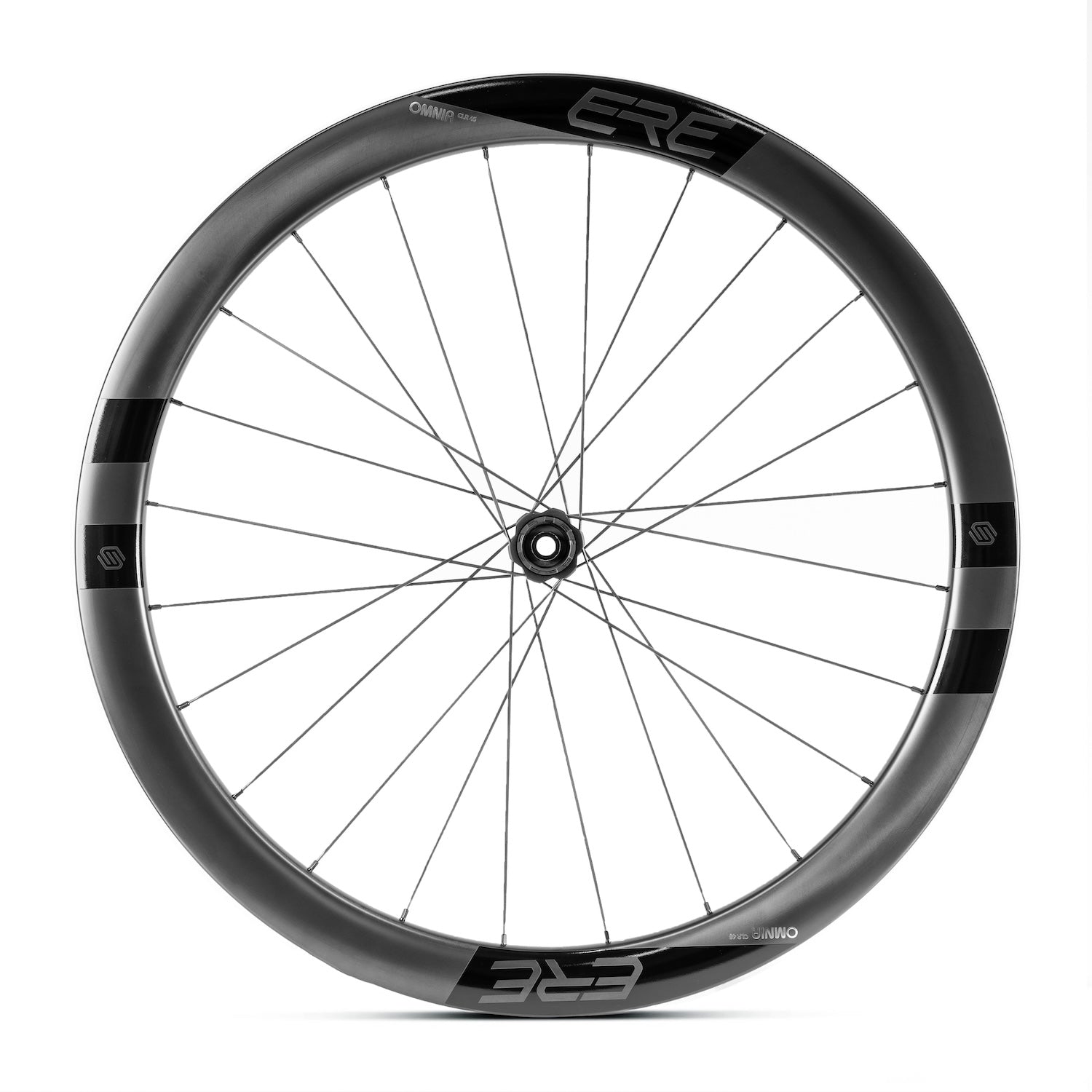

• Rear Wheel
• Ere ProClose 26 Tubeless rimtape is fitted to the wheels
